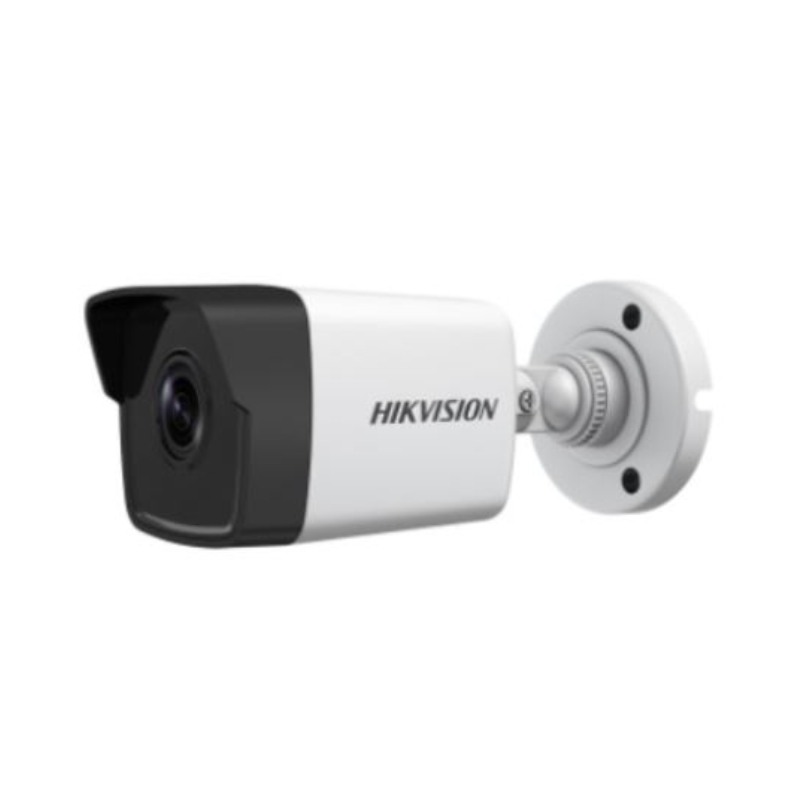

Camera DS-2CD1043G0-I

SKU: 920 Danh mục: 1 line, 4 Megapixel, Camera IP

Chính sách bảo hành tiện lợi (Xem chi tiết)

• Cảm biến 1/3″ Progressive Scan CMOS
• Độ phân giải 2560×1440:20fps(P)/(N),
• Ống kính cố định 4mm (đặt hàng 6mm)
• Độ nhạy sáng 0.01Lux @ (F1.2, AGC ON)
• Hồng ngoại EXIR tầm xa 30m
• Bộ lọc hồng ngoại chế độ ngày đêm (ICR), BLC, tự động bù sáng (AGC), DWDR, chống nhiễu 3D DNR
• 12 VDC ± 10%, PoE (802.3af)
• 147.49×78.2×92.87mm, 350g
• Chuẩn ngâm nước IP67

CHÚNG TÔI LUÔN SẴN SÀNG
ĐỂ GIÚP ĐỠ BẠN

Chat hỗ trợ trực tuyến

CHAT VỚI CHÚNG TÔI

Mô tả
Thông tin bổ sung

Camera không dây HIKVISION DS-2CD1043G0-I là dòng camera 1-IPC chuẩn nén H265+, thiết kế vỏ kim loại & nhựa chắc chắn, thẩm mỹ, hỗ trợ dịch vụ Hik-Connect.

Thông số kỹ thuật camera IP DS-2CD1043G0-I

– Chuẩn nén hình ảnh H.265+/H265/H.264+&H.264.

– Cảm biến hình ảnh 1/3″ Progressive CMOS.

– Hỗ trợ tính năng ICR.

– Độ phân giải 2560×1440: 20fps(P)/(N), 2304×1296:25fps(P)/30fps(N).

– Tăng cường hình ảnh với 3D DNR, BLC.

– Ống kính 2.8mm (đặt hàng 4mm, 6mm).

– Tầm xa hồng ngoại: đến 30m.

– Hỗ trợ dịch vụ Hik-Connect.

– Mặt trước: Kim loại.

– Mặt sau và chân đế: Plastic.

– Nguồn DC12V & PoE.

– Xuất xứ: Trung Quốc.

– Nhà phân phối: Phương Việt.

– Hãng sản xuất: HIKVISION.

Image Sensor	1/3" progressive scan CMOS
Min. Illumination	Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed	1/3 s to 1/100, 000 s
Slow Shutter	Yes
Auto-Iris	No
Day &Night	IR cut filter
DNR (Digital Noise Reduction)	3D DNR
WDR (Wide Dynamic Range)	Digital WDR
Angle Adjustment (Bracket) Pan:	0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
Focal Length	2.8 mm, 4 mm, 6 mm
Aperture	F2.0
Focus	No
FOV	2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88° 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°
Lens Mount	M12
IR Range	Up to 30 m
Wavelength	850 nm
Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG
H.264 Type	Baseline Profile/Main Profile/High Profile
H.264+	Main stream supports
H.265 Type	Main Profile
H.265+	Main stream supports
Video Bit Rate	32 Kbps to 8 Mbps
Region of Interest	1 fixed region for main stream and sub-stream
Max. Resolution	2560 × 1440
Main Stream	50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
Max. Frame Rate	60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement	BLC, 3D DNR
Image Settings	Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch	Auto, scheduled
Network Storage	NAS (NFS, SMB/CIFS)
Alarm Trigger	Motion detection, video tampering alarm, illegal login
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
General Function	Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version	5.5.3
API	ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View	Up to 6 channels Up to 32 users
Client	iVMS-4200, Hik-Connect, iVMS-5200
Web Browser	IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Operating Conditions	-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption and Current	12 VDC, 0.4 A, Max: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
Protection Level	TVS 2000V lightning protection, surge protection and voltage transient protection
Material	Metal & Plastic
Dimensions	Camera: Ø 70 mm × 172.7mm ( 2.7" × 6.8") With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight	Camera: approx. 280 g (0.62 lb.) With package: approx: 530 g (1.17 lb.)
