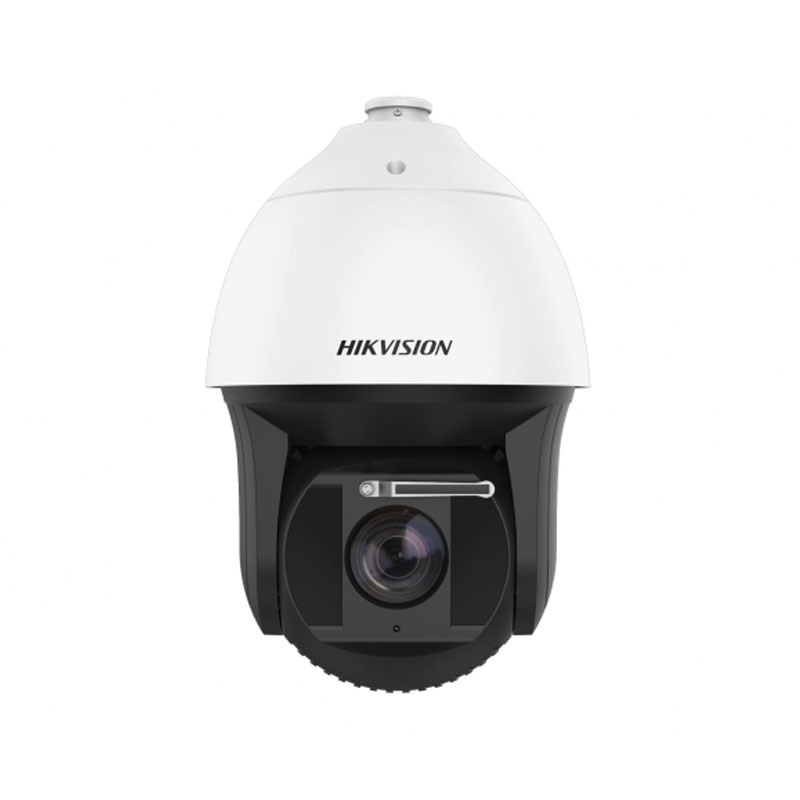

Camera HIKVISION PTZ DS-2DF8336IV-AELW có độ phân giải 3.0MP, hỗ trợ chống ngược sáng kỹ thuật số DWDR, chống nhiễu kỹ thật số 3D DNR, đèn hồng ngoại thông minh, ống kính Zoom 36X, hỗ trợ chuẩn chống sét TVS 4,000V, phù hợp lắp đặt khu vực bên trong tại công ty, bệnh viện, siêu thị, nhà xưởng, nhà sách, v.v….

Thông số kỹ thuật camera PTZ DS-2DF8336IV-AELW

– Cảm biến progressive scan CMOS (cho phép nó để chụp hình ảnh ở độ phân giải tối đa 2048 x 1536 ).

– Ống kính camera cũng có 5,7mm đa tiêu cự với góc nhìn rộng.

– Zoom quang 36x.

– Hồng ngoại tầm xa 200m hỗ trợ tầm nhìn ban đêm.

– Smart Tracking ,Wiper.

– Bộ lọc cắt IR cho phép ánh sáng hồng ngoại đi qua thấu kính và nhấn cảm biến khi mức ánh sáng giảm đi.

– Chuẩn IP66 và được thiết kế để chịu được bụi và mưa, và điều kiện thời tiết khắc nghiệt.

– Nguồn 24V AC & PoE+ ,Max 60w.

Xuất xứ: Trung Quốc.

Nhà phân phối: Phương Việt.

Hãng sản xuất: HIKVISION.

Image Sensor:

1/3" progressive scan CMOS

Minimum Illumination:

ƒ/1.6, 50 IRE, AGC on; color: 0.05 lux, B/W: 0.01 lux, 0 lux with IR

Max. Image Resolution:

2048 × 1536

Focal Length:

5.7 mm to 205 mm, 36x

Digital Zoom:

16x

Zoom Speed:

Approximately 4.5s (optical wide to tele)

Angle of View:

60.6° to 3.68° (wide to tele)

Min. Working Distance:

10 mm to 1500 mm (wide to tele)

Aperture Range:

ƒ/1.6 to ƒ/4.4

Focus Mode:

Auto/semiautomatic/manual

WDR:

120 dB

Shutter Speed:

50 Hz: 1 to 1/30,000s; 60 Hz: 1 to 1/30,000s

AGC:

Auto/manual

White Balance:

Auto/manual/ATW/indoor/outdoor/daylight lamp/sodium lamp

Day/Night:

IR cut filter

Privacy Mask:

24 privacy masks programmable

Enhancement:

3D DNR, defog, HLC/BLC, SVC

Range:

Pan:360° endless; tilt: -20° to 90° (auto flip)

Speed:

Pan manual speed: 0.1° to 160°/s, pan preset speed: 240°/s tilt manual speed: 0.1° to 120°/s, tilt preset speed: 200°/s

Number of Presets:

300

Patrols:

8 patrols, up to 32 presets per patrol

Patterns:

4 patterns, with the recording time not less than 10 minutes per pattern

Park Actions:

Preset/patrol/pattern/auto scan/tilt scan/random scan/frame scan/panorama scan

Scheduled Tasks:

Preset/patrol/pattern/auto scan/tilt scan/random scan/frame scan/panorama scan/dome reboot/dome adjust/aux output

Smart Tracking:

Manual/panorama/ intrusion trigger/ line crossing trigger/region entrance trigger/region exiting trigger smart tracking when patrol between multiple

Smart Detection:

Face detection, intrusion detection, line crossing detection, audio exception detection, region entrance detection, region exiting detection

ROI Encoding:

6 areas with adjustable levels

IR Distance:

Up to 656 ft (200 m)

IR Intensity:

Automatically adjusted, depending on the zoom ratio

Alarm I/O:

7/2

Alarm Trigger:

Face detection, intrusion detection, line crossing detection, region entrance, region exiting, audio exception detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception

Alarm Action:

Preset, patrol, pattern, microSD/SDHC card recording, relay output, notification on client, send e-mail, upload to FTP, trigger channel

Monitor Output:

1.0 V[p-p]/75 Ω, NTSC (or PAL) composite, BNC (S/N ratio ≥55 dB)

Audio Input:

1 mic in/line in interface, line input: 2-2.4 V[p-p]; output impedance: 1KΩ, ±10%

Audio Output:

1 audio output interface, line level, impedance: 600 Ω

Ethernet:

10Base-T/100Base-TX, RJ-45 connector

Main Stream:

50 Hz: 25 fps (2048 × 1536), 25 fps (1920 × 1080), 25 fps (1280 × 720)/50 fps (2048 × 1536), 50 fps (1920 × 1080) 60 Hz: 30 fps (2048 × 1536), 30 fps (1920 × 1080), 30 fps (1280 × 720)/60 fps (2048 × 1536), 60 fps (1920 × 1080)

Sub Stream:

50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144); 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)

Third Stream:

50 Hz: 25 fps (2048 × 1536), 25 fps (1920 × 1080), 25 fps (1280 × 720), 25 fps (704 × 576), 25 fps (352 × 288), 25 fps (176 × 144) 60 Hz: 30 fps (2048 × 1536), 30 fps (1920 × 1080), 30 fps (1280 × 720), 30 fps (704 × 480), 30 fps (352 × 240), 30 fps (176 × 120)

Image Compression:

H.264/MJPEG, H.264 encoding with baseline/main/high profile

Audio Compression:

G.711ulaw/G.711alaw/G.726/MP2L2/G.722

Protocols:

IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Simultaneous Live Views:

Up to 20 users

MicroSD Memory Card:

Supports up to 128 GB microSD/SDHC/SDXC card. Supports Edge recording.

User/Host Level:

Up to 32 users,3 levels: administrator, operator, and user

Security Measures:

User authentication (ID and PW); host authentication (MAC address); IP address filtering

Application Programming:

Open-ended API, supports ONVIF, PSIA, CGI, and Genetec

Web Browser:

IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+, supports multi-language

RS-485 Protocols:

HIKVISION, -P, Pelco-D, self-adaptive

Power:

High-PoE and 24 VAC, maximum 60 W (injector included)

Working Temperature:

-40° F to 149° F (-40° C to 65° C)

Humidity:

90% or less

Protection Levels:

IP66, IK10, TVS 6,000 V lightning protection, surge protection, and voltage transient protection

Certification:

FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1

Dimensions:

φ10.5" x 14.38" (φ266.6 mm × 365.2 mm)

Weight (approximate):

17.64 lbs (8 kg)
