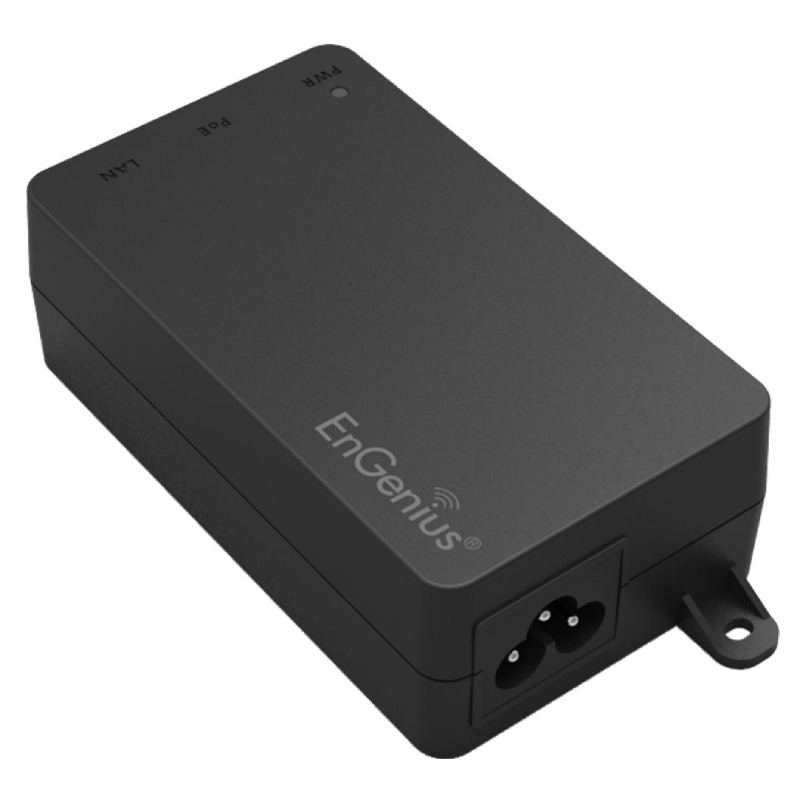

Engenius EPA5012GP Passive 54V Gigabit PoE Adapter

Chính sách bảo hành tiện lợi (Xem chi tiết)

[contact-form-7 id=”454″ title=”Báo giá”]

CHÚNG TÔI LUÔN SẴN SÀNG
ĐỂ GIÚP ĐỠ BẠN

Chat hỗ trợ trực tuyến

CHAT VỚI CHÚNG TÔI

The EPA5012GP Passive PoE Adapter supports high-speed data and up to 60 Watts/54V of power to compliant devices such as APs, IP cameras or VoIP phones to 100 meters away over a single cable. A compact, optimal port design provides easy, precise installation, while built-in power surge protection preserves valuable equipment.

Thông số cơ bản Engenius EPA5012GP PoE Adapter

– Gigabit Ethernet In & Out Ports for High-Speed Devices.

– Disconnect, Short-Circuit & Surge Protection Ensure Reliable, Secure Connections.

– Mounts to Walls or Ceilings With Included Hardware.

Nhà phân phối: Phương Việt.

Thương hiệu: EnGenius.

Standards

802.3 10BaseT 802.3u 100BaseT 802.3ab Gigabit Ethernet

Compliance

FCC Part 15 Class B IEC 60950-1:2005+A1 UL60950-1 2nd CE ENS55032:2012/AC:2013 EN55024:2010 RCM AS/NZS60950.1: 2011/Amdt 1: 2012

Physical Interface

(1) Gigabit Data Port (1) Gigabit Data & Power Output Port (1) IEC 320C6 AC Connector

LED Indicator

1 x Power on Green

Mounting

Wall (anchors & screws included)

Power

Input Voltage 100 to 240VAC

Input Current

1.6A Max for 120VAC

AC Input Frequency

50-60Hz

Maximum Output Power

60W

Power Lines

Pin4(Vdc+)&Pin5(Vdc+) Pin7(Vdc-)&Pin8(Vdc-)

Data Specifications

10/100/1000 Mbit/s Pin1(Rx+)&Pin2(Rx-) Pin3(Tx+)&Pin6(Tx-)

Added Protection Features

Short-Circuit Surge (over current/over voltage)

Surge Protection

L-L: 2KV L-G: 4KV

ESD Protection

Contact: 4KV Air: 8 KV

Temperature Range

Operating: 32°F to 104°F (0°C to 40°C) Storage: -22°F to 176°F (-30°C to 80°C)

Humidity (non-condensing)

Operating: 5 to 90% or less Storage: 5 to 90% or less

EPA5012GP Device

Weight: 0.317 lbs. (144 g) Length: 3.9” (100 mm) Width: 2.27” (58.5 mm) Height: 1.3” (33.4 mm)

Package Contents

EPA5012GP Power Cord
