Engenius EWS1025CAM AP Camera

Mã: 2433 Danh mục: ,
Chính sách bảo hành tiện lợi (Xem chi tiết)

[contact-form-7 id=”454″ title=”Báo giá”]


Chat hỗ trợ trực tuyến


The AP MeshCam combines ultra-fast mesh Wi-Fi and clear surveillance in a simple, space saving design. Eliminate dead zones and unsecured areas with widespread visibility through optimized connectivity. Smart-sensing mesh simplifies setup. Receive email alerts with motion or audio-detected triggers, and centrally manage.

Thông số kỹ thuật EnGenius EWS1025CAM AP Camera

– Camera IP EWS1025CAM tích hợp chức năng phát sóng của thiết bị mạng không dây.

– Fast 11ac Speeds to 867 Mbps for Smooth, Buffer-Free Connections.

– Operate Alone, Centrally Manage, or Remotely Manage via ezMaster™.

– 802.3at/af-Compliant PoE Offers Flexible Device Placement.

– 120-Degree 2-MP HD Lens & Night Visibility to 65 Ft.

– Includes 16-Ch. VMS Software With Live Monitoring.

Nhà phân phối: Phương Việt.

– Hãng sản xuất: EnGenius.

– Xuất xứ: Đài Loan.

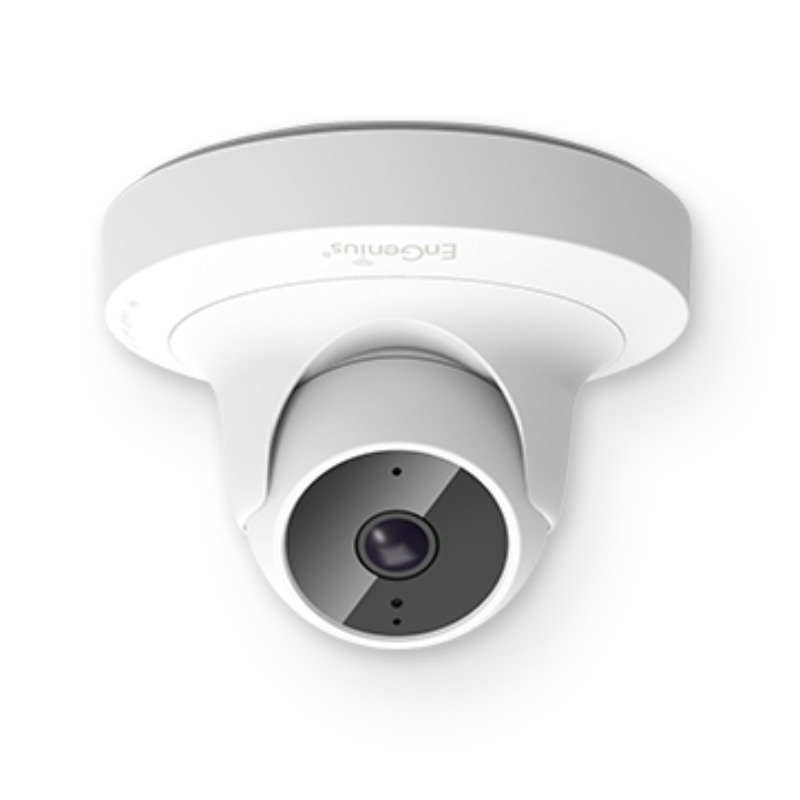

Một số hình ảnh sản phẩm EnGenius EWS1025CAM AP Camera:

Engenius EWS1025CAM AP Camera


IEEE 802.11b/g/n on 2.4 GHz IEEE 802.11a/n/ac on 5 GHz IEEE 802.3at/af IEEE 802.11r IEEE 802.11k IEEE 802.11i IEEE 802.11x


5dBi 5 GHz & 5dBi 2.4 GHz Internal High-Gain Antennas

Physical Interface

1 x 100/1000 Gigabit Ethernet Port – Supports 802.3at/af PoE Input 1 x Reset Button 1 x Power Connector 1 x Micro SD/SDXC Slot 24 Pcs IR LEDs 1x Embedded Microphone

LED Indicators

1 x Power 1 x 2.4 GHz 1 x 5 GHz 1 x Ethernet 1 x Mesh

Power Source

24V Proprietary Compliant Source 12VDC/1.5A Active Ethernet (PoE)

Memory Capacity

Micro SD/SDXC – (up to 64G)

Image Sensor

Sony 1 /2.9” 2-Megapixel Progressive Scan CMOS


Fixed Board Lens Fixed-Focus, f=2.8 mm / F2.0


120° (diagonal)

IR Illuminator

24 Pcs LEDs, Up to 65 Feet


Removable IR-Cut Filter

Minimum Illumination

Color (IR-Off): 0.01 Lux / F2.0 B/W (IR-On): 0 Lux / F2.0

Shutter Time

1/2 sec. to 1/10,000 sec.




2x Video Streams

Frame Rates

Up to 30 FPS at 1920 x 1080P

Image Settings

Adjustable Image Size, Quality & Bit Rate


Brightness Sharpness Contrast White Balance Saturation Exposure AGC/AWB/AES Flip & Mirror Time Stamp & Text Caption Overlay Auto/Manual Day & Night Mode 3D Noise Reduction Low Light Compensation (LLC)

Audio Streaming



Built-In Microphone

Wireless & Radio Specifications

Dual-Concurrent Radio

Operation Modes

Mesh Access Point/Access Point Standalone: Access Point, Client Bridge, WDS Access Point, WDS Bridge, WDS Station

Transmit Power

Up to 15 dBm on 2.4 GHz Up to 15 dBm on 5 GHz Max transmit power is limited by regulatory power

Radio Chains/Spatial Streams

2 x 2:2

Supported Data Rates (Mbps)

2.4 GHz: Max 300 5 GHz: Max 867 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15) 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1~2)

Supported Radio Technology

802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)


802.11ac with 20/40/80 MHz channel width 802.11n with 20/40 MHz channel width 802.11a/b/g with 20 MHz channel width

Supported Modulation

802.11b: BPSK, QPSK, CCK 802.a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Multiple BSSID

Supports up to 16 SSIDs, 8 SSIDs per Radio

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging VLAN Pass-Through

Spanning Tree

Supports 802.1d Spanning Tree Protocol


Compliant with IEEE 802.11e Standard WMM


v1, v2c, v3


I/II, Private MIB Deployment Options Stand-Alone (Individually Managed) Managed Mode (with Neutron Series Switch/ezMaster)

Stand-Alone Management Features

Auto-Channel Selection Wireless STA (Client) Connection List Guest Network Fast Roaming (802.11k & 802.11r) Pre-Authentication (802.11i, 802.11x) PMK Caching (802.11i) RSSI Threshold Band Steering Traffic Shaping VLANs for Access Point – Multiple SSIDs Backup/Restore Settings Auto Reboot E-Mail Alert

Wireless Management Features (with ezMaster & Neutron Switch)

AP Auto Discovery and Provisioning AP Auto IP Assignment AP Cluster Management Remote AP Rebooting AP Device Name Editing AP Radio Settings Band Steering Traffic Shaping Fast Roaming (802.11k & 802.11r) Pre-Authentication (802.11i, 802.11x) PMK Caching (802.11i) RSSI Threshold AP Client Limiting Client Fingerprinting AP VLAN Management VLANs for AP – Multiple SSIDs Secured Guest Network Captive Portal Access Point Status Monitoring Rogue AP Detection Wireless Client Monitoring Background Scanning Auto Transmit Power Auto Channel Email Alert Wireless Traffic & Usage Statistics Real-time Throughput Monitoring SmartSync Redundancy Visual Topology View Floor Plan View Map View Wireless Coverage Display Secure Control Messaging (SSL Certificate) Local MAC Address Database Remote MAC Address Database (RADIUS) Unified Configuration Import/Export Bulk Firmware Upgrade Capability One-Click Update Intelligent Diagnostics Kick/Ban Clients Wi-Fi Scheduler Traffic Shaping


Web Interface (HTTP) CLI (Telnet)

Control Features

Managed Mode (by Neutron Switch/ezMaster) Band Steering Auto-Reboot One-Click Firmware Upgrade Firmware Upgrade: Web Interface or CLI (FTP/HTTP)


WEP Encryption (64/128/152 bit) WPA/WPA2 Enterprise (PSK using TKIP or AES) Hide SSID in Beacons MAC Address Filtering, Up to 50 MACs per SSID SSH Support Client Isolation

Supporting Protocol

IPv4, TCP, UDP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, UPnP, NFS/Samba Client, QoS/DSCP, RTP, RTSP, 3GPP, PPPoE, Time Zone Management ONVIF Compatible (Profile S)

Event Trigger

Motion/Tamper/Audio Detection

Event Notification

Email/Push Notifications

Event Actions

File Upload to NFS/SAMBA/FTP/SMT/Local SD Card/EnGenius Cloud & Play Audio EnGenius Simple Smart Recording (Only for EnGenius Cloud Series Routers/Gateways)

Video Buffer

5-Seconds Pre-Alarm & Post-Alarm

Video Playback

PC/iPhone®/Android™ via EnVMS App

Viewing System Requirements

Operating SystemMicrosoft® Windows® 7/10

Web Browser

Edge, IE, Safari, Chrome, Firefox, Opera

Video Management Software

Microsoft Windows 7/10

EnVMS Mobile APP

iOS/Android Devices Live Viewing for Up to 5 Clients

Temperature Range

Operating: 32°F to 122°F, 0°C to 50°C

Humidity (Non-condensing)

Operating: 80% or less Storage: 80% or less

EWS1025CAM Device

Weight: 1.11 lbs. Diameter: 5.27″ (134 mm) Height: 3.81″ (97 mm)

Package Contents

– EWS1025CAM – 12V/1.5A Power Adapter – Mounting Bracket – Mounting Screw Set – T-Rail Mounting Kit – RJ45 Ethernet Cable – Quick Installation Guide
